Create new variables

Now we can extend the dataset QldShark_2017_Clean_v2 with a new variable Rainfall_mm from the BOM_GCS_Rain_2017 dataset. We will do this using a GREL expression cell.cross.

The cell.cross function performs a cross or lookup between two columns in two datasets or the same dataset. It returns an array (list) of zero or more rows in the project i.e. matching against BOM_GCS_Rain_2017 for which the cells in the column i.e. Date have the same content as cell Date .

Match a key variable and add a new variable using GREL cell.cross
  • Go to QldShark_2017_Clean_v2 project Firstly let’s transform the Date column to a date format.
  • Select Date column > Edit cells > Common transforms > To date`

Now

  • Select Area column > Facet > Text Facet
  • Select Gold Coast from Text Facet results menu

56 resulting matching rows will display which you can now work with.

  • On Date select Edit Column > Add column based on this column
  • name the new Column Rainfall_mm

  • enter this GREL expression:

    cell.cross("BOM_GCS_Rain_2017","Date")[0].cells["Rainfall_mm"].value

    • ("BOM_GCS_Rain_2017","Date") is the data we are looking up and matching.
    • [0] counts from the first value.
    • .cells[“Rainfall_mm”].value is a command to add the value from the Rainfall_mm variable to the new column, if there is a match.
  • 56 rows of the shark captures now have a new variable & value of rainfall added.
  • x close the Text Facet window.

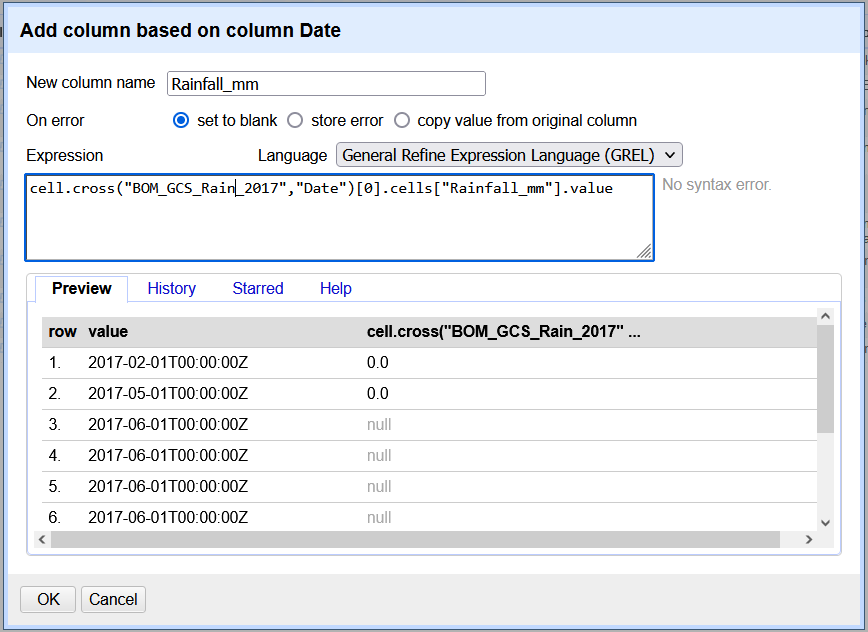

The image below shows the GREL cell.cross expression in action.

Add a column matching with a key id using GREL cell.cross
Add a column matching with a key id using GREL cell.cross
Follow the steps in this video.

Let’s now extend the dataset QldShark_2017_Clean_v2 with another variable Species from the NESP_SharkSpeciesList.csv dataset.

Tidy the data then match a key variable using GREL cell.cross

QldShark_2017_Clean_v2 currently contains a variable Species Name , but the values are actually common names the sharks are known by. Let’s change the variable name.

  • Go to QldShark_2017_Clean_v2 project
  • Select Species Name column > Edit column > Rename this column
  • name it Common name
  • Ok.

Next:

  • Select the Open button in the top right hand corner of OpenRefine to open a new instance of the software in your browser.
  • Create a new project using NESP_SharkSpeciesList.csv file
  • Name it NESP_SharkSpeciesList
  • Look at both datasets, what variables do they have in common?
    • Common name in ``NESP_SharkSpeciesList.csv`
    • Common name in NESP_SharkSpeciesList.
  • Go to Common name for each dataset
  • Facet > Text facet

Take a look at the names in each. The NESP_SharkSpeciesList dataset contains an authoritative list of Shark common names, Species, Genus, Family and Order names from a scientific project. The QldShark_2017_Clean_v2 list of names is not authoritative, and many of the shark common names are variations or incorrect. We need to correct the following:

All the “Whaler” names in QldShark_2017_Clean_v2 need to be changed to “Shark” as the only Whalers identified in NESP_SharkSpeciesList were Bronze and Creek Whaler. You can perform a filter on whaler to check.

We need to clean the inconsistent names to then match the values in the key variable accurately.

  • Go to Common name in QldShark_2017_Clean_v2
  • Edit cells > Replace
  • Find: whaler
  • tick case insensitive
  • Replace with: Shark
  • Ok.

Then on the same column:

  • Facet > Text Facet

The first shark name is an abbreviation let’s make it a full name.

  • highlight Aus Sharpnose Shark > Edit
  • Change to Australian Sharpnose Shark > Apply
  • Leave the Text facet window open.

We want to match on unique values in the variables, and at present many of the shark names in QldShark_2017_Clean_v2 are missing the term “Shark” in their title. We can check them against the Common name’s in NESP_SharkSpeciesList.

  • Look through the Text Facet list in QldShark_2017_Clean_v2 for names without Shark in their name. These include:

  • Australian Blacktip, Great Hammerhead, Mako and Wobbegong

  • Go to Common name in NESP_SharkSpeciesList > Text filter
  • type Australian Blacktip
    • note the results that the common name needs Shark added. Make this change in QldShark_2017_Clean_v2
  • now type Great Hammerhead in the Text filter
    • note the results are the same, so no changes needed
  • perform a filter for each of the four names above and check if correctly named.
  • note that Mako and Wobegong are generic names and we can’t identify the species exactly, so we won’t be able to match on these.

Now that we have cleaned up as many inconsistancies possible, let’s match the key variables:

  • Go to QldShark_2017_Clean_v2 project
  • at Common name select Edit Column > Add column based on this column
  • name the new Column Species

  • enter this GREL expression: (tip: you can reuse and make changes to previous expressions using the History tab)

    cell.cross("NESP_SharkSpeciesList","Common name")[0].cells["Species"].value

  • Preview and ok.

382 rows of the shark captures now have a new variable & value of Species added.

  • x close the Text Facet window.

Challenge: Try adding the Genus variable using the same steps as above.

Find more information on the cell.cross function here and more GREL functions here.

Watch the GREL cell.cross activity on this video
